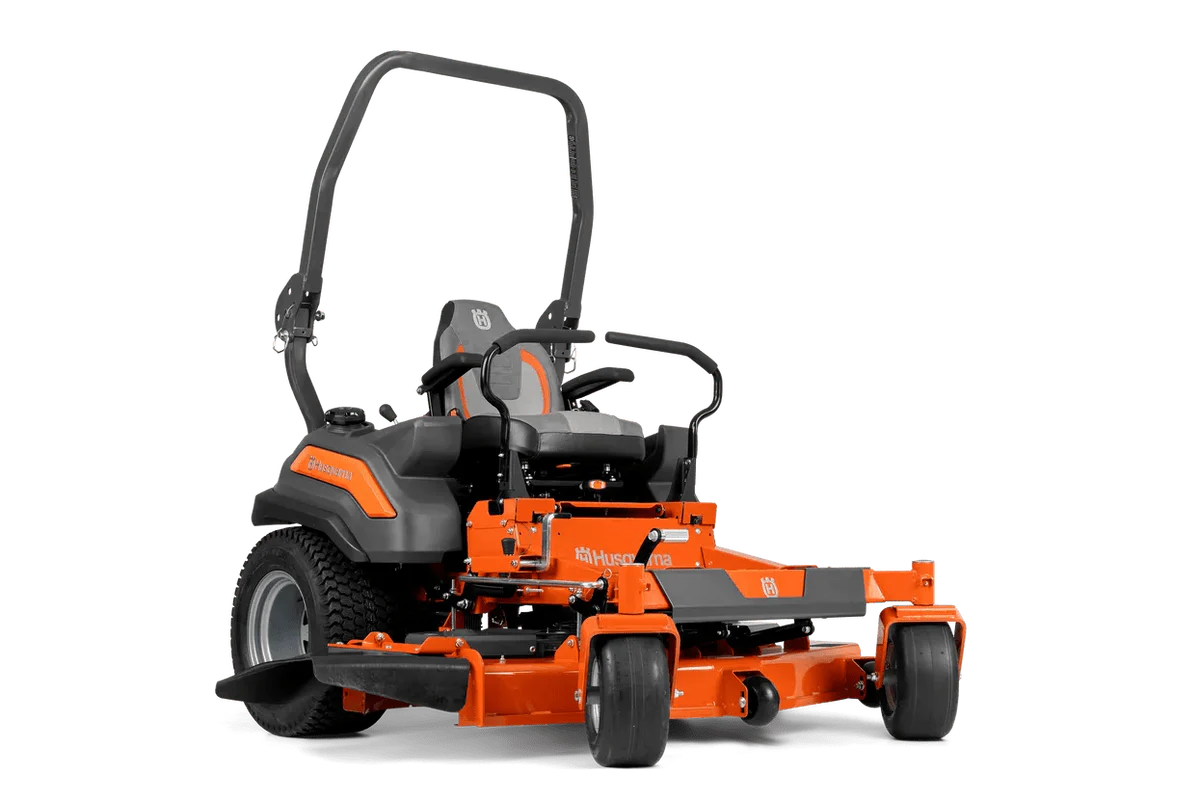

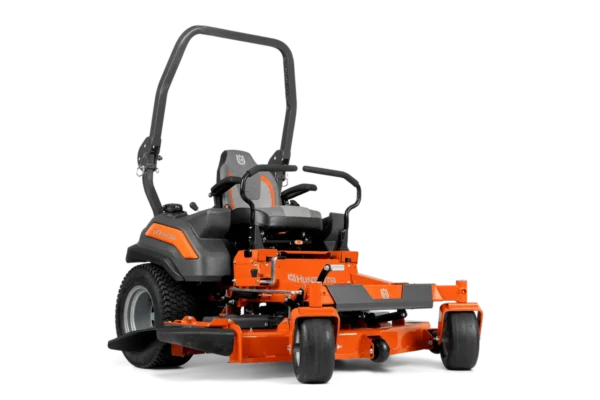

Husqvarna’s XS Series starts with all the benefits of the standard Z400 and takes it to the next level. Upgrades include a suspended seat platform for added comfort, Parker HTE12 transmissions with 23″ tires for increased ground speed, FX class Kawasaki engines, deeper cutting decks and twin fuel tanks for extended run time.
Specifications
| Capacity | Z454XS ZERO TURN 23.5HP Kawasaki FX, 54″ Fabricated Deck SKU: 970 49 71‑02 |
| Cutting width | 54 in |
|---|---|
| Speed forward min | 0 mph |
| Speed forward max | 11 mph |
| Emission | |
Exhaust emissions (CO₂ EU V)2 | 953.5 g/kWh |
| Cutting deck | |
| Cutting methods | Collect/Mulch/Side discharge |
| Deck thickness | 10 gauge |
| Deck Wash Port | No |
| Greasable mandrels | Yes |
| Nose roller | No |
| Powder-coated cutting deck | Yes |
| Spindle/mandrel type | Aluminium, commercial |
| Deck lifting system | Manual, foot activated |
| Cutting height steps | 13 |
| Cutting deck type | 10-gauge fabricated |
| Anti-scalp wheels | 4 |
| Blade engagement | Electric clutch |
| Blades | 3 pcs |
| Cutting deck material | Steel |
| Cutting height, min (approximate) | 1.5 in |
| Cutting height, max (approximate) | 4.5 in |
| Dimensions | |
| Weight | 961 lbs |
| Base machine, height (ROPS down) | 49.75 in |
| Base machine, height (ROPS up) | 64.25 in |
| Base machine, height | 49.75 in |
| Base machine, length | 76.5 in |
| Base machine, width (chute down) | 68.25 in |
| Base machine, width (chute up) | 55 in |
| Drive system | |
| Transmission manufacturer | Parker |
| Transmission type | Hydrostatic |
| Engine | |
| Engine name | FX Series V-Twin |
Engine Power (As rated by the engine manufacturer)1 | 23.5 hp |
| Cylinder displacement | 44.3 cu.inch |
| Air filter type | Heavy-Duty Canister Style |
| Cylinders | 2 |
| Engine cooling | Air |
| Engine lubrication type | Full pressure with oil filter |
| Fuel tank location | Side (Dual) |
| Fuel tank volume (with reserve) | 12 gal (US) |
| Motor/engine manufacturer | Kawasaki |
| Oil filter | Yes |
| Equipment | |
| Seat type | Professional, suspension |
| Cup holder | Yes |
| Hinged armrests | Standard |
| Hour meter type | Yes |
| ROPS | Standard (foldable) |
| Seat back height | High |
| Seat material | Vinyl |
| Control | |
| Connectivity | Not applicable |
