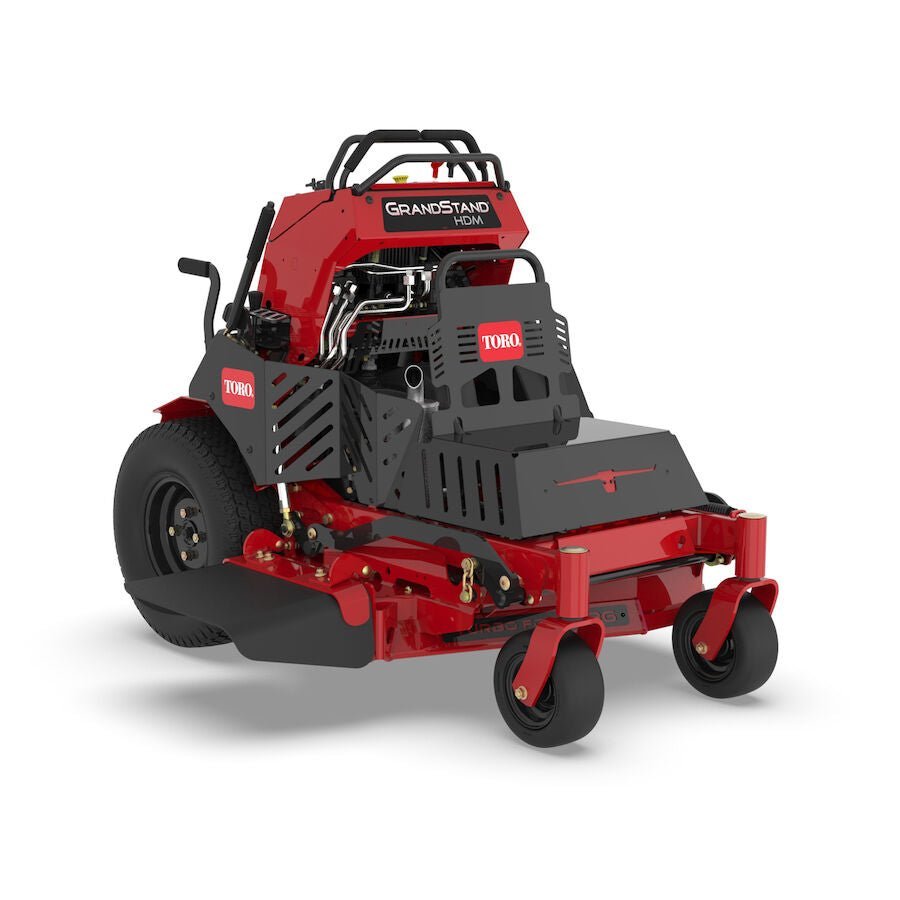

Stand up to long days and complex mowing jobs with the redesigned 36-inch GrandStand stand-on mower. Combining the speed and comfort of a zero-turn riding mower with the ease and maneuverability of a walk mower, you’ll knock out more jobs, faster, without the fatigue of a small walk-behind. From mowing to maintenance, this compact machine is built for easy, fast work.
- Compact for access to more yards, exceptional maneuverability, and easy storage and trailering.
- Mow more in less time without the fatigue that comes with operating a small walk-behind mower.
- Get the job done 3x faster than a 21-inch walk behind mower.****Disclaimer: Ground coverage via wider cutting path and enhanced speed of 32″ GrandStand Compact vs 21″ Heavy Duty mower and will vary due to mowing conditions.
- Redesigned hood flips up for easy maintenance and cleaning.
- Trim close without damaging landscape structures or your chute.
- Lift and lock the rear cover into place to easily check and fill both engine oil and hydro fluid.
- Horizon360 Business Management Software. Work More Efficiently. Run More Profitably.
Product Specifications
| Air Filter | Dual Element with Reinforced Primary Filter |
|---|---|
| Blade Design | 0.204 in. / 0.518 cm Thick Heat-treated Steel |
| Blade Tip Speed | 18,500 ft/min / 5,638 m/min |
| Box Dimensions | 45.5 in. x 70 in. x 52 in. / 115.6 cm x 117.8 cm x 132.1 cm |
| Brake System | Lever Actuated Bar Brake (Park Brake) |
| CARB Compliant | Not CARB Compliant |
| Carrier Frame | Welded Heavy-Duty 1.5 in. x 3 in. Tube Steel |
| Caster Tires | 9 in. x 4.5 in. – 5 in. (22.8 cm x 11.4 cm – 12.5 cm) Smooth Semi-Pneumatic |
| Clutch | Electromagnetic |
| Cooling System | Air Cooled |
| Deck Design | Fabricated Weldment |
| Deck Material | 7 Gauge High-Strength Steel |
| Deck Size | 36 in / 91 cm |
| Discharge Chute | Rubber |
| Drive System | Rear Wheel Drive |
| Drive Tires | 21 in. x 8.5 in. – 10 in. (53.3 cm x 21.6 cm x 25.4 cm) Turf Tires |
| Drive Type | Rear-Wheel Drive |
| Engine | 18.5 hp Kawasaki FS600V 603 cc |
| Engine Brand | Kawasaki |
| Engine Displacement (cc) | 603 cc |
| Engine Horsepower | 18.5 hp |
| Forward Ground/Transport Speed | Up to 7.5 mph / 12.0 kph |
| Forward Mowing Speed | Up to 7.5 mph / 12.0 kph |
| Front Bumper | Bull-Nose |
| Fuel Capacity | 5 gal. / 18.9 L / 20 Qt. |
| Fuel Type | Gasoline |
| Greasable Bearings | Yes |
| Product Type | Stand-On Mowers |
| Product Use | Commercial |
| Start Type | Electric |
| Steering Controls | Twin Lever |
| Weight | 780 lbs / 354 kg |
