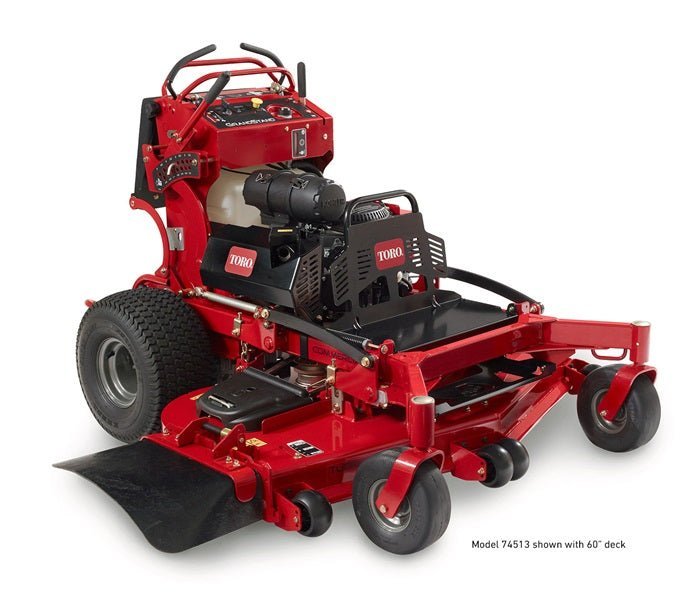

GrandStand 60 in. 23.5 HP 726cc (72509)

Product Highlights

• Improve productivity with easy access on and off the machine with up to 10.5 gallons of fuel capacity to mow longer with fewer stops.
• Exceptional visibility from the GrandStand protects the operator, the mower and the property. The operator is better able to steer clear of obstacles, and easily pass beneath branches.
• Toro’s foldable operator platform instantly converts the GrandStand to a walk-behind. It easily lowers back down when its time to ride – saving time, money and trailer space by eliminating the need to switch mowers.
• Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.

Specifications

• Engine23.5 hp* Kawasaki FX730V 726cc
• Fuel CapacityGas/10.5 gal (39.7 L)
• Cutting Width60″ (152.4 cm)
• Adjustable Discharge BaffleStandard, tools-free
• Air FilterHeavy-Duty Canister Air Cleaner
• Blade Tip Speed18,500+ ft/min
• Blade Type.25″ (.6 cm) heat-treated steel
• Carrier Frame3″ x 1.5″ x 12 gauge (7.6 cm x 3.8 cm x 12 gauge)
• Caster Tires11″ x 4″ – 5″ (27.9 cm x 10.2 cm – 12.7 cm) Flat-Free Semi-Pneumatic
• ClutchElectromagnetic
• Deck Design7-gauge 60″ (152.4 cm) TURBO FORCE w/bull-nose bumper
• Discharge ChuteRubber
• Drive SystemUnitized Pumps (10cc/rev) & Wheel Motors (10 cir)
• Drive Tires20″ X 10.5″ – 8″ (50.8 cm x 26.7 cm – 20.3 cm)
• Engine Horsepower23.5 hp*
• Engine Displacement726cc
• Ground SpeedUp to 10 mph forward (16.1 km/h)
• Height of Cut1.5″ – 5.0″ (2.5 cm – 12.7 cm)
• Hydraulic Fluid synthetic
• Comfort PlatformFoldable Operator Platform with Suspension
• Spindle BearingsGreaseless ball bearings
• Spindle Housing9″ (22.9 cm) diameter cast aluminum
• Steering ControlsTwin lever
