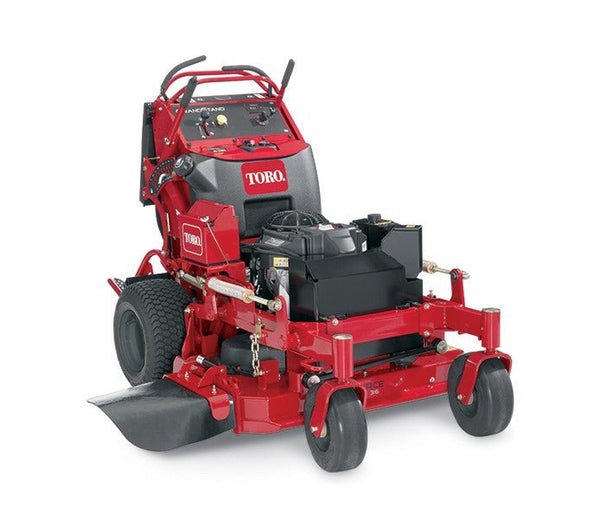

GrandStand 36 in. 15 HP 603cc (74534)

Product Highlights

• Exceptional visibility from the GrandStand protects the operator, the mower and the property. The operator is better able to steer clear of obstacles, and easily pass beneath branches.
• Toro’s foldable operator platform instantly converts the GrandStand to a walk-behind. It easily lowers back down when its time to ride – saving time, money and trailer space by eliminating the need to switch mowers.
• Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
• With hefty cast iron spindles including maintenance free bearings plus only annual grease points, there will be less need for routine maintenance. That means less time spent off your mower and more time generating profits with it.

Specifications

• Engine15 HP* (11 kw) Kawasaki FS541V 603cc
• Fuel CapacityGasoline – 7.8 gallons (29.5 L)
• Cutting Width36″ (91.4 cm)
• Blade Tip Speed18,500+ ft/min (5,640 m/min)
• Blade Type.25″ (.6 cm) heat-treated steel
• Carrier Frame3″ x 1.5″ x 12 gauge (7.6 cm x 3.8 cm x 12 gauge)
• Caster Tires11″ x 4″ – 5″ (28 cm x 10.2 cm – 12.7 cm) flat-free semi-pneumatic
• ClutchElectromagnetic
• ControlsTwin lever
• Deck Design7-gauge 36″ (91 cm) TURBO FORCE with bull-nose bumper
• Discharge ChuteRubber
• Drive SystemPumps (10cc/rev) & Wheel Motors (10 cir)
• Drive Tires18″ x 8.5″ – 8″ (46 cm x 22 cm – 20 cm)
• Engine Displacement603cc
• Ground Speed8.0 mph forward (12.9 km/h)
• Height of Cut1″ – 5″ in 1/4″ (2.5 cm – 12.7 cm in 6 mm) increments
• Hour MeterStandard
• Hydraulic Fluid synthetic
• Comfort PlatformFoldable Operator Platform with Suspension
• Spindle BearingsMaintenance-free
• Spindle Housing9 3/8″ (23.8 cm) diameter cast iron
• Weight833 lbs. (377.8 kg)
