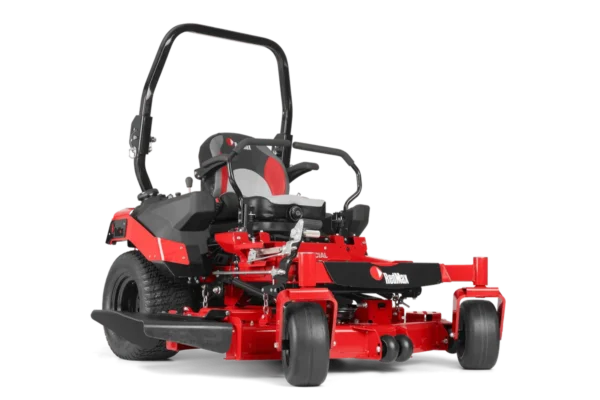

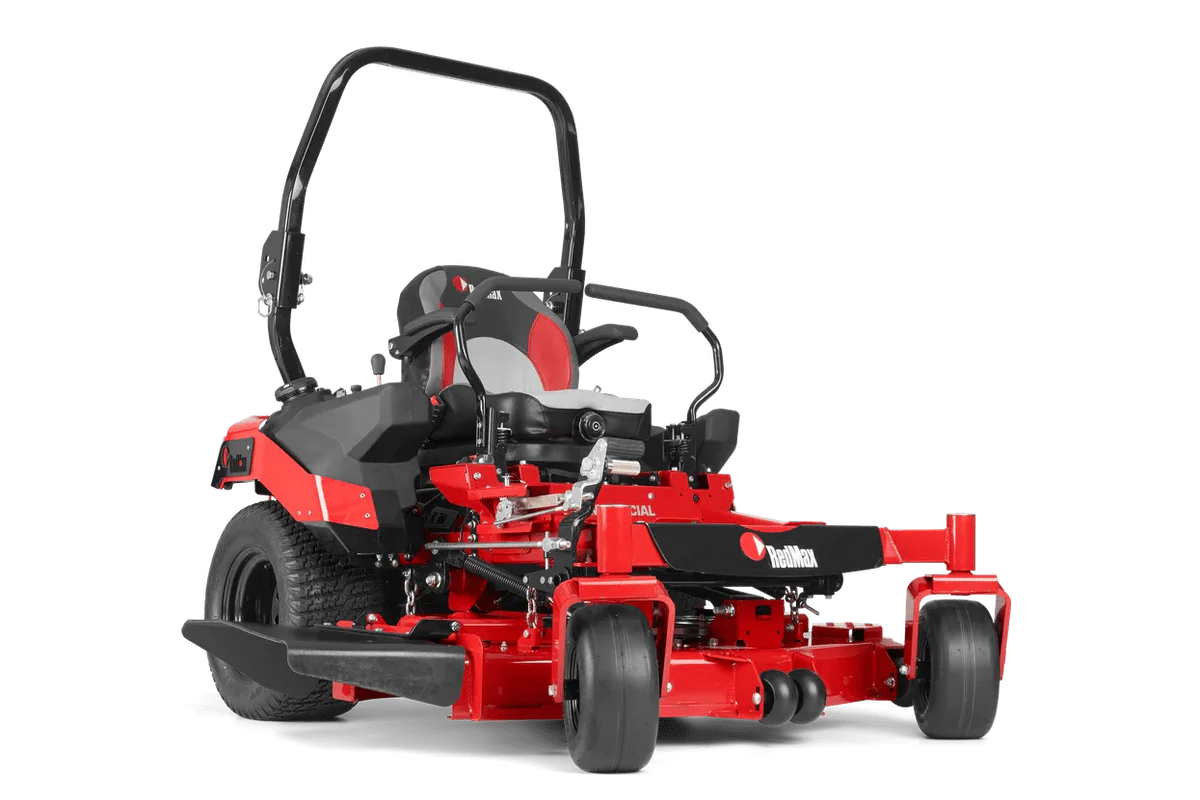

The RedMax CZTx platform was designed specifically for the commercial landscaper. With a focus on commercial engines, heavy duty Integrated drive systems, cast iron components, heavy gauge steel decks and robust frames, RedMax is designed to stand the test of time. Excellent full suspension seats with EVC technology will keep the operator comfortable all day on the roughest terrain. Superior traction and ease of operation make RedMax an efficiency expert on the job, providing dependability under the toughest mowing circumstances. Available with a full line of accessories for your specific mowing requirements.
Specifications
| Engine | 2021 model, ZT-5400 Drive Article Number: 970 49 76‑01 |
| Cylinder displacement | 52 cu.inch |
|---|---|
| Cylinders | 2 |
| Engine cooling | Air |
| Engine lubrication type | Full pressure with oil filter |
| Engine name | FX Series |
| Fuel tank location | Side (Dual) |
| Fuel tank volume (with reserve) | 11 gal (US) |
| Motor/engine manufacturer | Kawasaki |
| Power/fuel type | Gasoline |
| Equipment | |
| Cup holder | Yes |
| Seat back height | High |
| Seat spring | Yes |
| Seat type | , suspension |
| Cutting deck | |
| Anti-scalp wheels | 4 |
| Blade engagement | Electric clutch |
| Blades | 3 pcs |
| Cutting deck material | Steel |
| Cutting deck type | 7-gauge fabricated |
| Cutting methods | Collect/Mulch/Side discharge |
| Cutting width | 54 in |
| Deck thickness | 7 gauge |
| Capacity | |
| Speed forward max | 11 mph |
| Speed forward min | 0 mph |
| Drive system | |
| Transmission manufacturer | Hydro-Gear |
| Transmission model | ZT 5400 |
| Dimensions | |
| Base machine, height | 46 in |
| Base machine, length | 81 in |
| Base machine, width | 53.5 in |
| Weight | 1,283 lbs |
