Description

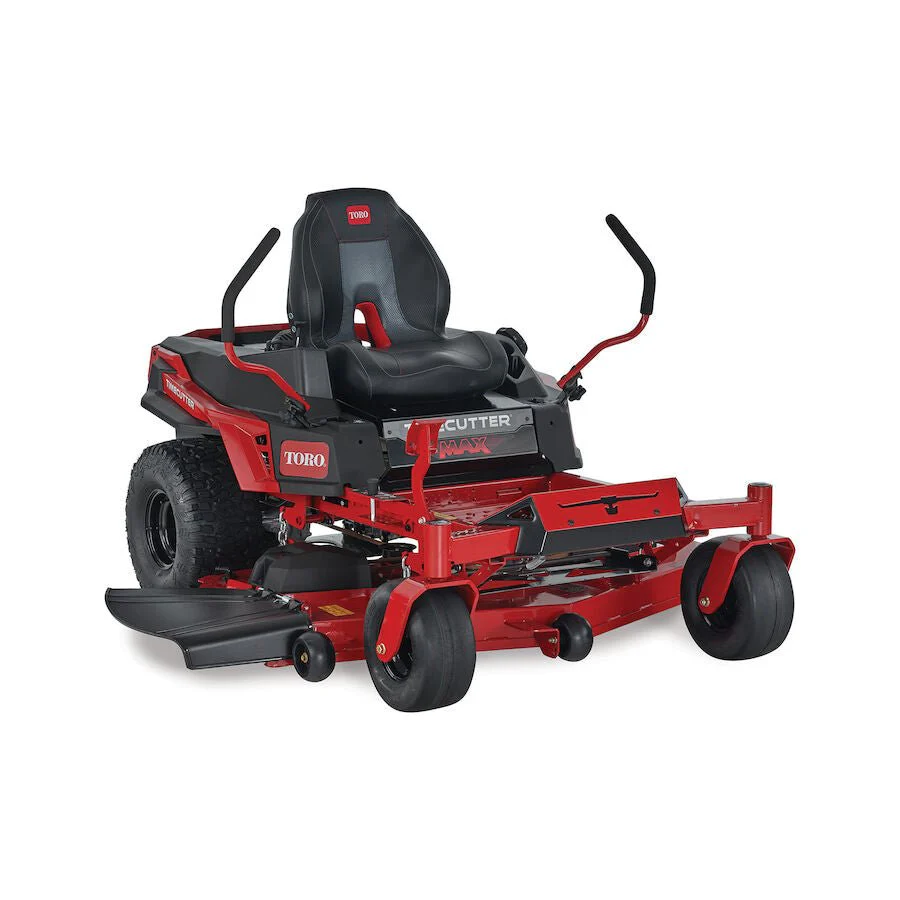

No matter how you cut it, the Toro TimeCutter MAX arms you with professional performance, rock-solid durability and -grass-in-the-neighborhood precision. Built with over a century of pro-level engineering, this lawn-dominating machine features a heavy-duty IronForged deck, beefy, traction-happy tires, easy maintenance, and a plush, gaming-style seat to give you the edge over whatever nature throws your way.

  • Over 100 years of Pro DNA course through the veins of every mower we build.
  • Its heavy duty steel IronForged Deck doesn’t flinch no matter what you throw its way.
  • The gaming-style seat gives you big time support exactly where you need it.
  • The four-point deck hanging system doesn’t flinch under your feet when you get on or off the mower.
  • Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
  • Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
  • Spray blocking fenders keep tire spray off your engine, and more importantly, you.
  • The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
  • Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
  • The extra-large, built-in drink holder keeps your beverage handy so you can keep powering through.
  • Download the MyToro app from your mobile device’s app store for easy access to product resources, including manuals, how-to’s, and more

Product Specifications

Air FilterStandard Kawasaki Air Cleaner
Anti Scalp Wheels3 Standard
ArmrestsOptional
Bagger Capacity4.9 bushels
Blade Tip Speed18,500 ft/min / 5,638 m/min
CARB CompliantNot CARB Compliant
Carrier Frame3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
Caster Tires13 in. x 6.5 in. – 6 in. (33 x 16.5 cm – 15.2 cm) Pneumatic
ClutchElectromagnetic
Comfort PlatformStandard Suspension
Cooling SystemAir Cooled
Crankshaft1″ (25 mm) w/Steel Protector
Cup HolderStandard
Cutter SystemSteel Cutting Blade
Cutting Width60 in / 152 cm
Deck Design10-Gauge steel IrongForged
Deck Material10 Gauge Steel
Discharge ChuteSide
Drive SystemHydrostatic
Drive Tires20 in. x 10 in. – 8 in (51 cm x 26 cm – 20.3 cm)
Drive TypeRear-Wheel Drive
Engine23 hp Kawasaki FR691V 726cc
Engine BrandKawasaki
Engine Displacement (cc)726 cc
Engine Horsepower23.0 hp
Engine Power (kW)17.2 kW
Foot Operated Height of CutStandard
Forward Ground/Transport SpeedUp to 7.0 mph / 11.2 kph
Forward Mowing SpeedUp to 7.0 mph / 11.2 kph
Frame3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
Fuel Capacity5 gal. / 18.9 L / 20 Qt.
Fuel TypeGasoline
Greasable BearingsYes
Height of Cut1.0 – 5.0 in. / 2.5 – 12.7 cm
Hitch BracketStandard
Hour MeterStandard Hour Meter
Hydraulic DriveStandard
LightingOptional
Number of Blades3
Product UseResidential
Recommended Oil Type10W-30
Roll-Over Protection (ROPS)Optional
Seat19″ Gaming Style
Spindle BearingsMaintenance-free
Spindle HousingCast-Aluminum
Start TypeElectric
Steering ControlsTwin Lever
Steering DampenersStandard Dampers
Terrain TypeFlat with Obstacles
Tires13 in. x 6.5 in. (33 cm x 16.5 cm) Front, 20 in. x 11 in. (50.8 cm x 27.9 cm) Rear
TransmissionDual Hydrostatic HG-ZT2800
Washout PortStandard
