Description

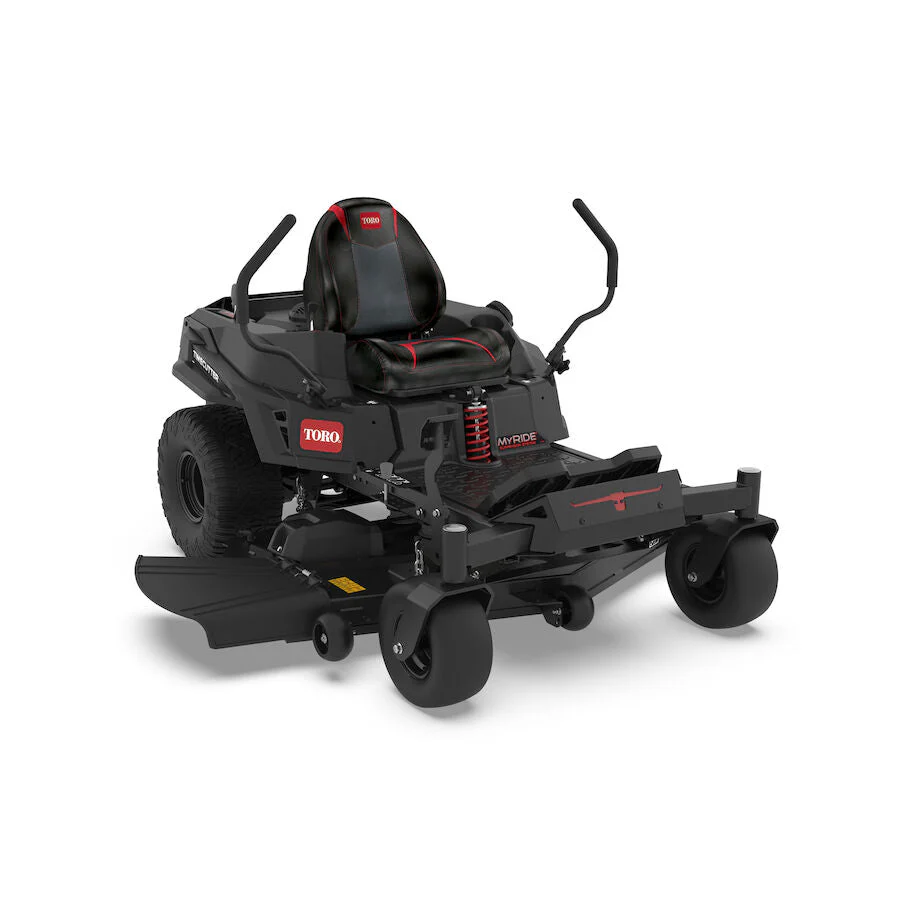

When it comes to your yard, second just won’t cut it. That’s why the Toro TimeCutter MAX is designed to take down grass like a pro and leave you feeling like a million bucks when you’re done. With features like an unflinching heavy duty IronForged deck and fully floating MyRIDE Suspension, you get the toughness and precision that comes with over a century of pro-level engineering and a shockingly smooth, back-saving ride and save a ridiculous amount of time cutting.

  • Patented MyRIDE Suspension sits isolated from the frame to save your back and accelerate your mow.
  • Over 100 years of Pro DNA course through the veins of every mower we build.
  • Its heavy duty steel IronForged Deck doesn’t flinch no matter what you throw its way.
  • The four-point deck hanging system doesn’t flinch under your feet when you get on or off the mower.
  • Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
  • Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
  • Spray blocking fenders keep tire spray off your engine, and more importantly, you.
  • Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
  • The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
  • Aggressive paint job that says you don’t keep up with the Jones’, you are the Jones’.

Product Specifications

Air FilterStandard Kawasaki Air Cleaner
Anti Scalp Wheels3 Standard
ArmrestsOptional
Bagger Capacity4.9 bushels
Blade Tip Speed18,500 ft/min / 5,638 m/min
CARB CompliantNot CARB Compliant
Carrier Frame3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
Caster Tires13 in. x 6.5 in. – 6 in. (33 x 16.5 cm – 15.2 cm) Pneumatic
ClutchElectromagnetic
Comfort PlatformMyRIDE Suspension System
Cooling SystemAir Cooled
Crankshaft1″ (25 mm) w/Steel Protector
Cup HolderStandard
Cutter SystemSteel Cutting Blade
Cutting Width60 in / 152 cm
Deck Design10-Gauge steel IrongForged
Deck Material10 Gauge Steel
Discharge ChuteSide
Drive SystemHydrostatic
Drive Tires20 in. x 10 in. – 8 in (51 cm x 26 cm – 20.3 cm)
Drive TypeRear-Wheel Drive
Engine23 hp Kawasaki FR691V 726cc
Engine BrandKawasaki
Engine Displacement (cc)726 cc
Engine Horsepower23.0 hp
Engine Power (kW)17.2 kW
Foot Operated Height of CutStandard
Forward Ground/Transport SpeedUp to 7.0 mph / 11.2 kph
Forward Mowing SpeedUp to 7.0 mph / 11.2 kph
Frame3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
Fuel Capacity5 gal. / 18.9 L / 20 Qt.
Fuel TypeGasoline
Greasable BearingsYes
Height of Cut1.0 – 5.0 in. / 2.5 – 12.7 cm
Hitch BracketStandard
Hour MeterStandard Hour Meter
Hydraulic DriveStandard
LightingOptional
Number of Blades3
Product UseResidential
Recommended Oil Type10W-30
Roll-Over Protection (ROPS)Optional
Seat19″ Gaming Style
Spindle BearingsMaintenance-free
Spindle HousingCast-Aluminum
Start TypeElectric
Steering ControlsTwin Lever
Steering DampenersStandard Dampers
Terrain TypeFlat with Obstacles
Tires13 in. x 6.5 in. (33 cm x 16.5 cm) Front, 20 in. x 11 in. (50.8 cm x 27.9 cm) Rear
TransmissionDual Hydrostatic HG-ZT2800
Washout PortStandard
