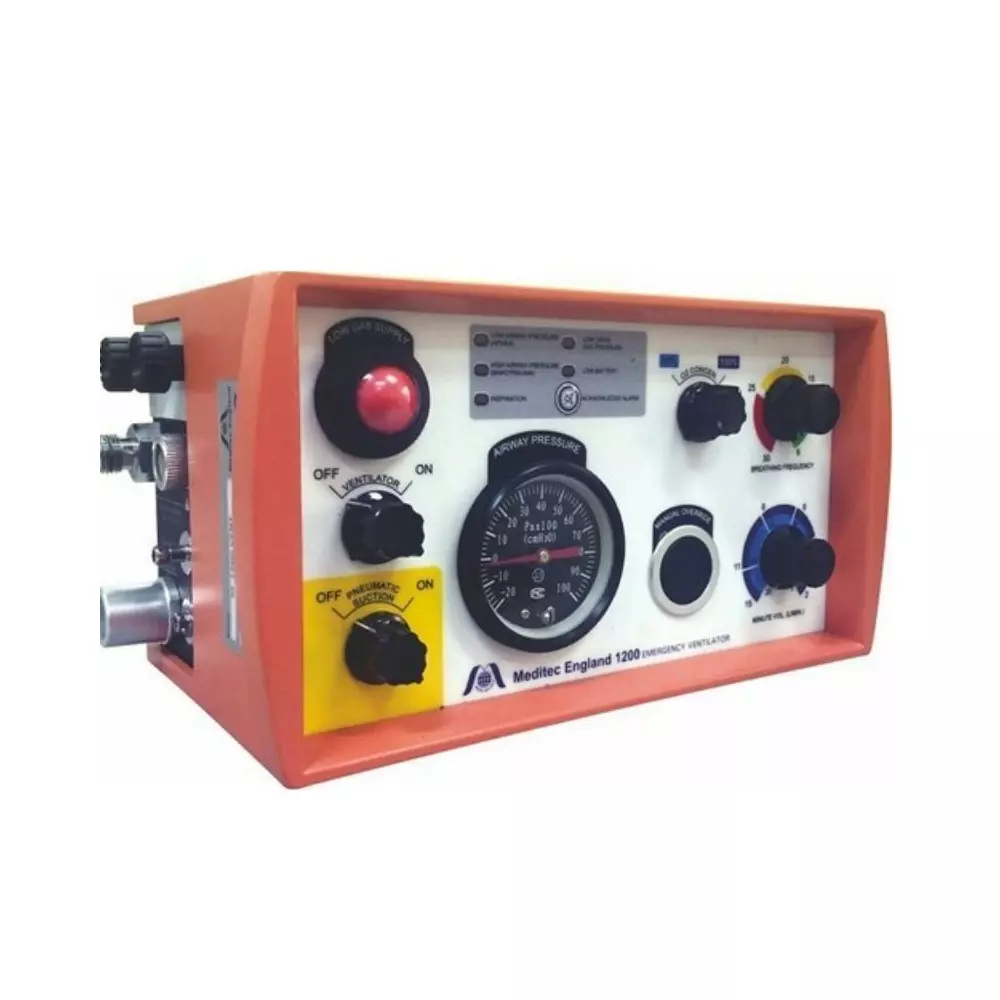

Allied Meditec 1200 Emergency Ventilator is versatile, simple and economic model, designed specifically for use by respiratory therapists, paramedics and trained emergency personnel. Our 1200 Emergency Ventilator enables greater control of breathing parameters. Allied Meditec 1200 Emergency Ventilator is suitable for ventilation during emergency or controlled transportation of adults, children and infants.
 Meditec 1200 Portable Ventilator : Key Features Â
- Pneumatically Driven Ventilator
- Pipeline or Cylinder Operated with a non-return Valve
- IPPV Ventilation Mode
- Useful for both Adult & Paediatric patients
- Bronchial Suction
- In built battery back up
- Electronically controlled alarm system (Low & High pressure alarm, Low battery alarm & Low gas supply alarm)
 Meditec 1200 Portable Ventilator : Technical Specifications Â
| Brand | Meditec England |
| Model | Meditec 1200 |
| Driven by pipeline or cylinder operated with a non-return valve | Yes |
| Pneumatically Driven Ventilator | Yes |
| IPPV Ventilation Mode | Yes |
| Adult & Pediatric | Yes |
| Manual Override Function | Yes |
| Bronchial Suction | Yes |
| In-built Battery | Yes |
| I:E Ratio | (1:2) |
| Oxygen Concentration (Air mix) | 60 or 100% |
| Minute Volume with 60% O2 | 3–20 Ltr/min |
| Minute Volume with 100% O2 | 2–15 Ltr/min |
| Breathing Frequency (Adjustable 6–30 bpm Add on PEEP (Optional) | 0–20 cmH2O |
| Pressure Manometer | 20–100 cmH2O |
| Noise | <65 DB |
| Cylinder Time | 3 Ltr cylinder when fully charged with MV of 6 l/m): >60 mi |
| Driving Gas Pressure | 280–600 kPa |
| Electronically Controlled Alarm System | Yes |
| Low-Pressure Alarm (Apnea Alarm) | Yes |
| High-Pressure Alarm | Yes |
| Low Battery Alarm | Yes |
| Low Gas Supply Alarm | Yes |
| Ventilation Cycle Indication | Yes |
| Alarm Silence up to 120 Sec | Yes |
| Dimensions (W x H x D) | 257 x 135 x 152mm |
| Weight | 4.4 Kg |
| Storage Temperature | 0°C–50°C |
| Operating Temperature | 0°C–50°C |
| Storage Atmospheric Pressure | 50–110kPa |
| Operating Atmospheric Pressure | 70–110kPa |
| Wall Mount | Optional |
Standard Accessories with the Portable Ventilator, Meditec 1200Â :
- Ventilator Main Unit: 1 Set
- Hose System: 1 Set
- 2/3 Ltr O2 Cylinder with Regulator & Gauge: 1 Set
- FrameWork and Dust Proof Cover
- Breathing Hose: 1.2 Meter
- Mask: 1 Piece
- Suction Tube & Bottle: 1 Set
- Cylinder Filling Attachment: 1 Set
