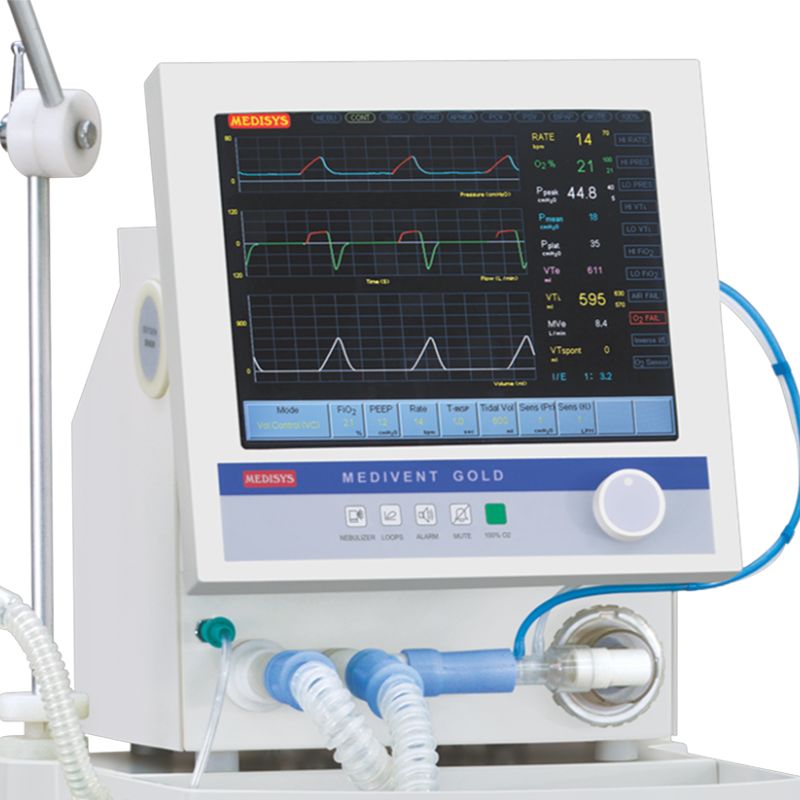

Medisys Medivent Gold Ventilator

The Medisys Medivent Gold Ventilator is an electronically controlled, pneumatically operated ventilator designed for pediatric and adult intensive care settings. It offers advanced ventilation modes, integrated monitoring, and built-in compressor/air supply flexibility to suit critical care applications across a broad range of patient needs.

Features:

• Dual supply of compressed air and oxygen; optional backup if either gas fails.
• Dedicated invasive and non-invasive ventilation modes, including interaction between control and support.
• Large colour display (12.1-inch TFT) showing waveforms (P-T, F-T, V-T), loops (PV, FV), lung mechanics and alarm logs.
• Integrated low-noise compressor for air supply (as per manufacturer statement).
• Automatic calibration of oxygen sensor and auto compensation for tidal-volume loss due to circuit compliance.
• Leak compensation for mask-based NIV and apnea backup support.
• Emergency “100% O₂” button for urgent oxygen enrichment.
• Full patient data and alarm logging capabilities.

Hospital Benefits

• Supports both pediatric and adult patient ventilation with a wide tidal-volume and mode range.
• Built-in air supply flexibility (compressed air + internal compressor) reduces dependency on hospital pipeline constraints.
• Comprehensive monitoring and loop displays enable precise lung-mechanics assessment and timely clinical intervention.
• Fast emergency O₂ enrichment and backup gas supply enhance patient safety in critical events.
• Integrated data logging and alarm sequence tracking improve traceability and clinical documentation.
• Low-noise operation and large display improve ICU environment and clinician usability.

Technical Specification

• Gas Supply: Air and Oxygen at ~3 to 4 bar
• Modes of Ventilation: VC (Volume Control), PC (Pressure Control), PRVC (Pressure Regulated Volume Control), VS (Volume Support), PS (Pressure Support), SIMV(VC)+PS, SIMV(PC)+PS, SIMV(PRVC)+PS, 2PAP+PS, NIV, APRV, Standby
• FiO₂ Range: 21 % to 100 %
• Tidal Volume (VT): 50 to 1500 mL
• Respiratory Frequency: 1 to 50 breaths per minute
• Inspiratory Time: 0.3 to 3 seconds (up to 10 seconds in APRV)
• Inspiratory Hold Time: 0 to 2 seconds
• Demand Flow: 2 to 120 L/min
• PEEP: 0 to 30 cm H₂O
• Sensitivity: Pressure 1-10 cm H₂O or Flow 1-10 L/min
• PSV: 0-30 cm H₂O
• 2PAP: EPAP 3 to 40 cm H₂O / IPAP 0 to 30 cm H₂O above PEEP
• APRV Setting: 3-24 cm H₂O @ 6 to 16 breaths per minute
• Electrical Requirement: 200-220 VAC, 50 Hz
• Battery Backup: ~3 hours
