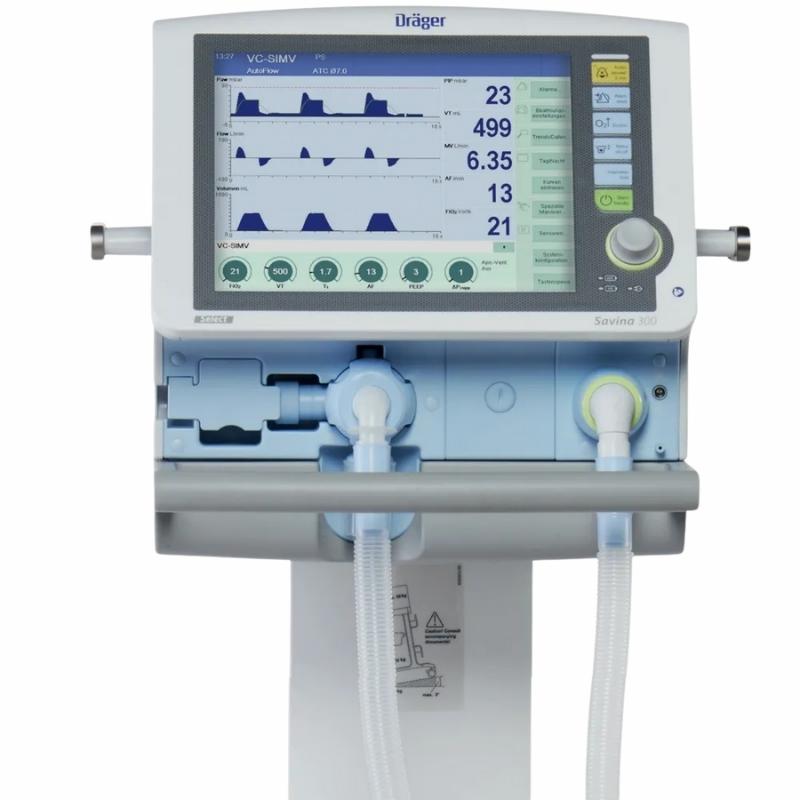

Drager Savina 300 ICU Ventilator

The Dräger Savina 300 is a turbine-driven ICU ventilator designed for high-quality ventilation of adult and paediatric patients across all acuity levels. It delivers advanced therapy in challenging environments, including rural areas or facilities with unreliable power supply. Its integrated safety sensors, optional external battery, and turbine-based air supply make it ideal for ICUs, transport, and sub-acute care settings.

Features:

• Integrated turbine for independence from compressed air supply.
• AutoFlow® technology for patient-adapted inspiratory flow.
• High sensitivity triggering and leak management.
• Graphic and numeric display of real-time ventilation data.
• Alarm system and optional nurse call interface.
• Compact and robust design suitable for transport and ICU deployment.

Hospital Benefits:

• Comprehensive Patient Coverage: Supports adult and pediatric patients, including very low tidal volume settings for neonates with optional PediatricPlus.
• Versatile Ventilation Modes: Multiple invasive and non-invasive modes (IPPV, SIMV, CPAP, BIPAP, NIV) allow customization for diverse ICU and transport scenarios.
• Portability & Independence: Turbine-driven airflow and optional battery operation enable use in areas without central compressed air or stable power supply.
• Enhanced Patient Safety: Integrated sensors continuously monitor airway pressure, tidal volume, minute ventilation, and O₂ concentration with real-time alarms for rapid intervention.
• Ease of Use: Intuitive touchscreen interface and clear waveform displays reduce training time for ICU staff and allow quick, confident operation.
• Transport Capability: Compact design with optional external battery allows safe intra-hospital and ambulance transport of critical patients.
• Alarm & Safety Integration: Advanced alarms, automatic flow adjustments (AutoFlow®), and optional nurse call ensure continuous monitoring and patient protection.

Specifications:

• Patient Type: Adult, pediatric
• Ventilation Frequency: 2 – 80 bpm
• Inspiration Time: 0.2 – 10 s
• Tidal Volume: 0.05 – 2.0 L BTPS
• Inspiratory Flow: 0 – 180 L/min
• Inspiratory Pressure: 0 – 99 mbar
• PEEP / Intermittent PEEP: 0 – 35 mbar
• Pressure Support / ASB: 0 – 35 mbar relative to PEEP
• Flow Acceleration: 5 – 200 mbar/s
• O₂ Concentration: 21 – 100%
• Trigger Sensitivity: 1 – 15 L/min
• Measured Values Display: Peak pressure, plateau pressure, mean airway pressure, tidal volume (inspiratory & expiratory), minute volume, breathing frequency, inspiratory O₂ concentration, optional gas temperature
• Curve Displays: Airway pressure / time, flow / time
• Ventilation Ratio (I:E): 150:1 to 1:150
