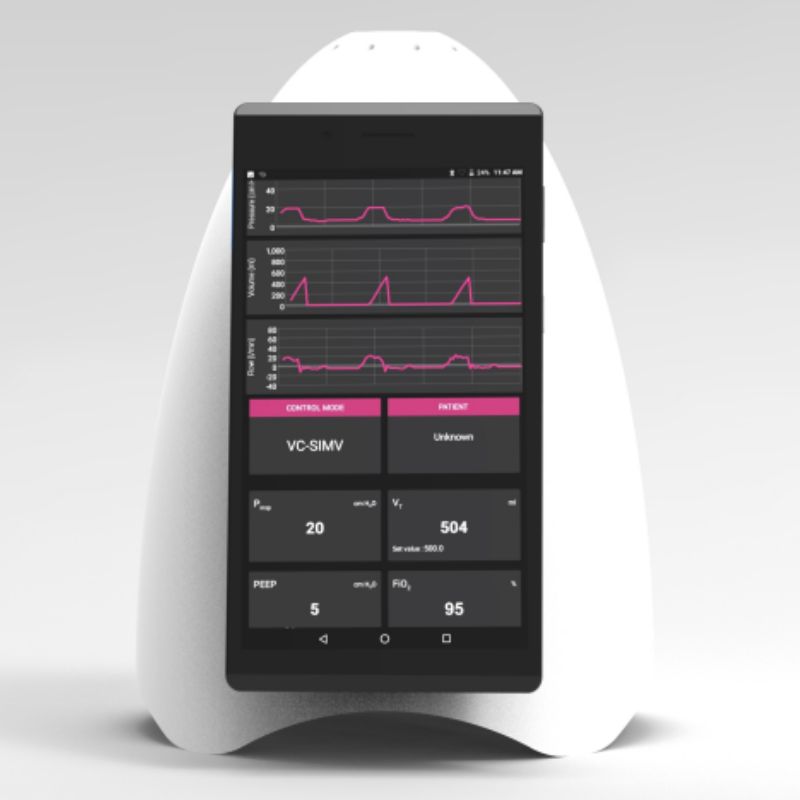

Agva Advanced Homecare and Hospital Ventilator are designed to be a complete ICU ventilator which is small, economical and easy to use. The primary focus of the ventilator is to provide mechanical ventilation for everyone in need. Its small package ensures easy storage and transportation, whereas its intuitive user interface makes it extremely easy to use even for a non trained person. Finally due to its phenomenally low cost and no need for infrastructure requirement makes it ideal for scaling up the ICU
Key Features:
- Modes: VC-CMV, VC-SIMV, ACV, PRVC, PC-CMV, PC-SIMV, PSV, CPAP, BPAP
- Runs on Room Air without the Need of Compressed Medical Air
- Can Deliver 100% FiO2 when connected to Oxygen Source (Low Flow)
- Apnea Detection with volume guaranteed backup ventilation
- Simple Connection with standard 22mm Ventilator Circuit with proximal flow sensor
- Standard ventilator alarms with user-configurable limit alarms
Technical Specifications:
| Brand | AgVa |
| Model | Advanced |
| Modes available | PC-CMV, PC-SIMV, PSV, SPONT., VC-SIMV, VC-CMV, PRVC, VCV, CPAP, BPAP, AV- CPAP, AV-BPAP |
|---|---|
| Battery | 80 watt-hour Lithium-Ion Battery (6 hours backup) |
| Power Consumption | 15 watts (Nominal), 48 watts (Peak) |
| Peak Flow rate | 160 Litres per minute |
| PEEP | 0 cmH2O to 20 cmH2O (increments of 1 cmH2O) |
| Trigger Flow Sensitivity | 1 Liter per minute to 20 Liter per minute |
| Volume Accuracy | 10% of the full scale between (10 L/min – 80L/min) |
| Peak Pressure | 60 cmH20 |
| Peak Respiratory rate | 60 Breath per minute |
| Minimum inspiratory time | 0.3 seconds |
| Tidal Volume | 50 ml to 2000 ml (increments of 1 ml) |
| FiO2 Capability | 100% at an input flow rate of 15 L/min of pure oxygen with MVi of less than 10 L and PEEP < 6 80% at an input flow rate of 15 L/min of pure oxygen with MVi of more than 15 L and PEEP < 6 |
Accessories:
- Patient Circuit
- Cable
- Power Adaptor
